BMW 323 325 328  90-94 E34 E36 L6

1.5/2.0 way LSD (limited slip differential gear). Very similiar to the design of Cuscos.

Bearings need to be heated to 80 degrees Celsius for installation.

E30 (1982–1994)

• 320i (manual and automatic)
• 323i
• 325i / 325is / 325ix (AWD uses front + rear 188mm diffs) M20 engines
• 325e / 325es
• M3 E30 S14 engine

E36 (1990–2000)

• 318ti Compact (selected variants) M42 & M44 engines
• 320i / 323i / 325i / 328i M50 & M52 engines
• M3 3.0 (S50B30 engine) – Europe (188mm LSD)
• Z3 1.9 / 2.0 / 2.2 / 2.8 / 3.0

E30/E36

BMW 323 325 328 90 – 94 E34 E36 L6

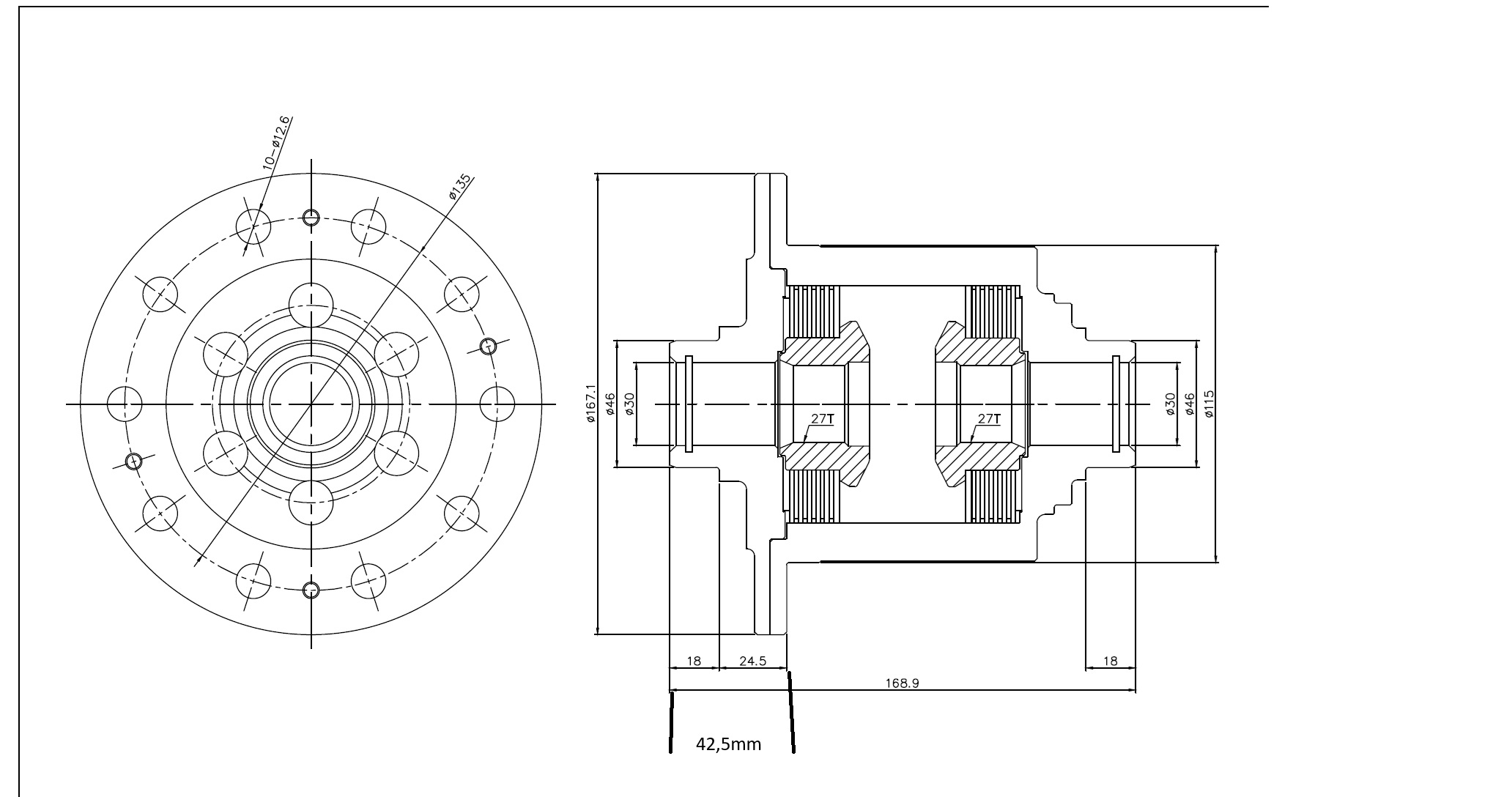

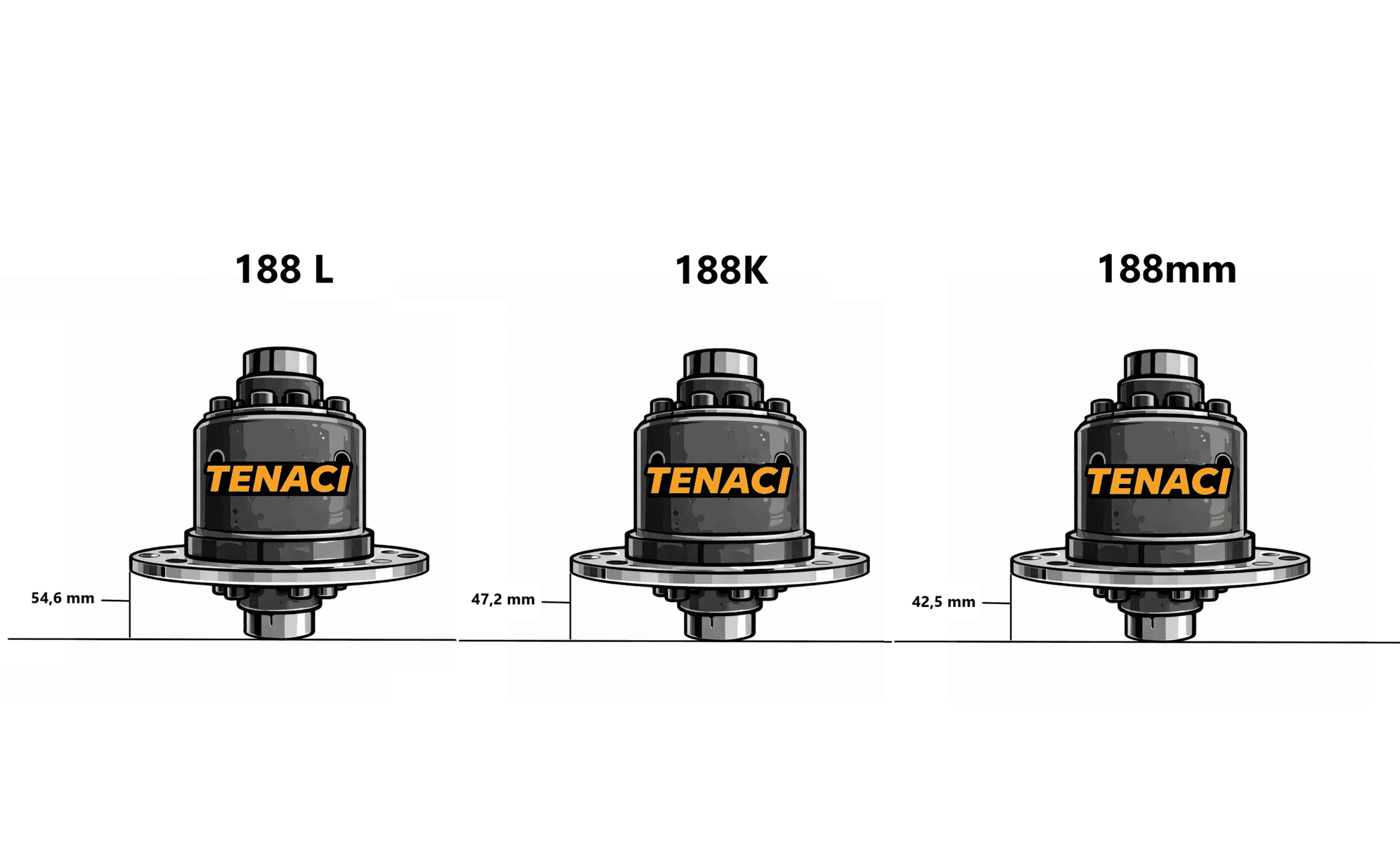

Tenaci BMW torsen differential 188 mm 42,5mm

BMW E24, E28, E30, E34, E36, xE36, Z1, Z3

Helical LSD for vehicles fitted with 188 differential.

Suits:-

E24 633csi, 635csi

E28 518i, 520i (4,1:1)

E28 525i, 535i

E28 528i Manual

E30 325i Manual

E30 325ix Manual Rear

E30 M3

E34 524td Manual

E34 525i Automatic (Australian specification)

E34 525i Manual

E34 530i, 535i

E36 323i Auto

E36 325i Manual and Automatic (3,15:1)

E36 328i Auto (3,07:1)

E36 M3 3.0

E36 M3 Evo 3.2 (final drive 2227453)
