TENACI Motorsport Series – 184 mm / 7.25″ Racing Clutch Systems
Professional Motorsport Clutch Systems – For Drivers Who Value Quality Over the Lowest Price.
The TENACI Motorsport Series is engineered by TENACI Motorsport for drivers who demand premium racing clutch systems, reliable performance, low rotating mass and precise clutch control.
Unlike many conventional racing clutches with aggressive ON/OFF engagement, TENACI uses premium MIBA friction material to provide smoother, more progressive clutch engagement.
Whether manoeuvring through the paddock, driving in the pits or loading your race car onto a trailer, TENACI provides improved clutch control while maintaining the performance required for serious motorsport applications.
Premium MIBA Friction Technology
One of the most important features of TENACI racing clutches is the quality of the friction material.
Our racing clutch discs feature 35 mm wide MIBA friction pucks, using premium friction technology of the same type found in established motorsport clutch systems from manufacturers such as Sachs, Helix, AP Racing and Alcon.
All TENACI Motorsport Series 184 mm clutch discs have a thickness of 7.2 mm, with 6-puck friction discs recommended for controlled engagement and effective heat management.
Key Benefits:
- Smooth and progressive clutch engagement
- Excellent heat resistance for demanding racing conditions
- Predictable clutch control at low speeds
- Reduced aggressive ON/OFF characteristics
- Consistent friction performance
- High-quality materials for demanding motorsport use
TENACI 3-Step-Down Backplate System – Extended Clutch Life
Three Operating Positions – Two Additional Wear Adjustments.
All TENACI Motorsport Series 184 mm clutch kits feature our innovative 3-Step-Down Backplate System, engineered by TENACI Motorsport to extend the usable service life of racing clutch discs.
The system provides three operating positions. As the friction discs wear, the clutch cover can be rotated to the next step-down position to compensate for wear and help maintain the correct clutch operating geometry.
How the System Works:
- Position 1 – New Clutch: Initial operating position with new friction discs.
- Position 2 – First Adjustment: Rotate the clutch cover to the second position as the friction discs wear.
- Position 3 – Second Adjustment: Rotate the clutch cover to the final position as the friction discs wear further.
Key Advantages:
- Three Operating Positions – One initial position and two additional wear compensation adjustments.
- Extended Clutch Disc Life – Allows the friction discs to remain in service longer before replacement.
- Lower Maintenance Costs – Helps reduce the frequency of clutch disc replacement.
- Simple Adjustment – Reposition the clutch cover to the next step-down setting when required.
- Better Long-Term Value – Maximizes the usable life of premium TENACI MIBA racing clutch discs.
Instead of replacing the friction discs when the original operating position reaches its adjustment limit, the TENACI 3-Step-Down system provides two additional adjustment positions.
Always inspect the clutch components and follow the correct adjustment procedure and wear limits.

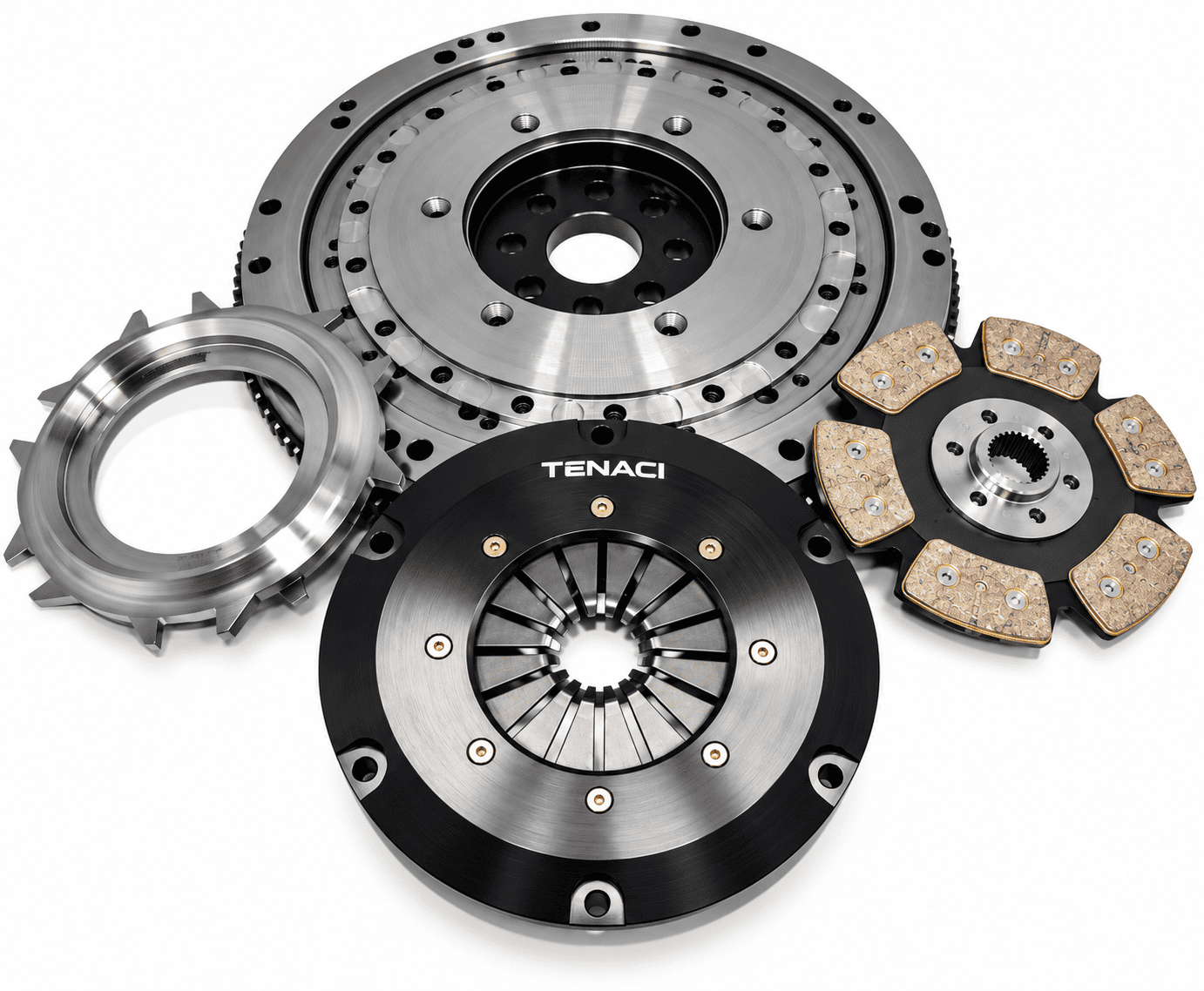

TENACI Modular Flywheel System
The TENACI Motorsport Series features our modular flywheel concept, developed for flexibility, durability and easier maintenance.
Instead of replacing the complete flywheel assembly when changing clutch configurations, the modular system allows compatible clutch covers and components to be combined with the same flywheel platform.
Advantages of the Modular Design:
- Supports multiple clutch configurations
- Easier replacement of wear components
- Flexible upgrades for changing power requirements
- Reduced need to replace the complete flywheel
- Suitable for different motorsport applications
The system is available in Single Disc, Twin Disc and Triple Disc configurations, depending on the vehicle application and required torque capacity.
Technical Overview
| Specification | Details |
|---|---|
| Product Series | TENACI Motorsport Series |
| Clutch Diameter | 184 mm / 7.25″ |
| Clutch Disc Thickness | 7.2 mm |
| Available Configurations | Single, Twin & Triple Disc |
| Friction Material | Premium MIBA |
| Recommended Disc Type | 6-Puck Racing Disc |
| Friction Puck Width | 35 mm |
| Flywheel System | TENACI Modular |
| Backplate System | TENACI 3-Step-Down |
| Wear Compensation | Three Operating Positions / Two Additional Adjustments |
| Mounting Pattern | Standard 7.25″ Motorsport |
| Engineering | Engineered by TENACI Motorsport |
| Applications | Rally, Rallycross, Circuit Racing, Time Attack & Hillclimb |
Clutch configuration, gearbox spline and torque capacity depend on the selected kit.
Designed for Motorsport
TENACI 184 mm racing clutch systems are developed for a wide range of competitive motorsport applications.
Suitable for:
- Rally & Rallycross
- Circuit Racing
- Time Attack
- Hillclimb
- Track Racing
- Competition Vehicles
The compact 184 mm clutch design helps reduce rotating mass compared with larger clutch systems, making it particularly suitable for motorsport applications where fast engine response and efficient gear changes are important.
Standard 7.25″ Motorsport Bolt Pattern
TENACI 184 mm racing clutches use the widely adopted 7.25″ motorsport clutch mounting bolt pattern.
This mounting pattern is also found on selected racing clutch systems from:
Tilton, AP Racing, Helix, Quarter Master, Sachs and Alcon.
This provides flexibility for motorsport applications using the established 7.25″ racing clutch format.
Please note that identical mounting patterns do not automatically guarantee component compatibility. Installation height, disc thickness and release requirements must always be verified.
Why Choose TENACI Motorsport?
Engineered by TENACI Motorsport – Built for Racing. Designed to Last.
TENACI combines premium MIBA friction technology, modular flywheel construction and the innovative 3-Step-Down Backplate System to deliver professional racing clutch solutions.
Our focus is on precise clutch control, durability and long-term value – not simply the lowest purchase price.
TENACI MOTORSPORT – Serious Racing Performance. Controlled Engagement.
